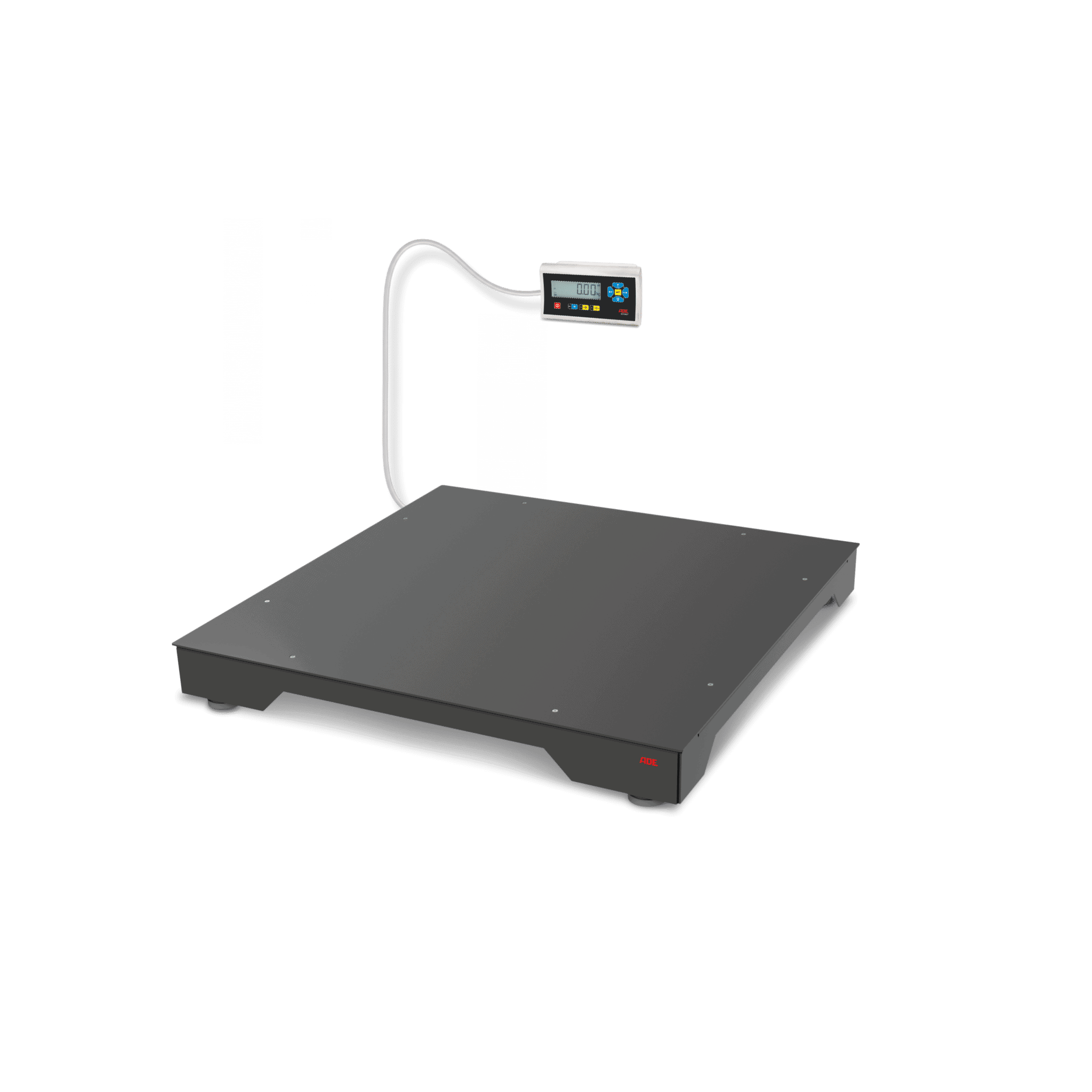

Floor Scale | ADE Series BW2-LACK+ STAN07

Floor Scale | ADE Series BW2-LACK+ STAN07

Designed for flexible use in demanding day-to-day operations, the floor-level BW2-LACK, with a total height of approx. 16 cm, can be easily accessed by a forklift or pallet truck at any time and positioned at different locations. The robust construction from powder-coated steel, combined with the moisture-protected load cells (IP67) and height-adjustable levelling feet, ensures consistently precise measurement results – even on uneven industrial floors.
The scale is supplied fully assembled and includes the STAN07 display unit, complete with an 8 m measurement cable and integrated power supply. With maximum capacities of up to 3,000 kg, various platform sizes and optional CE approval, the series offers a robust, German-made weighing solution for demanding manufacturing and warehousing processes.

Description

  • Fully assembled and function-tested: including digital display STAN07 with 8 m measuring cable
  • For installation on the floor: can be easily driven under with forklift truck or pallet truck
  • Robust, flat and level design with a height of approx. 16 cm ensures stability and reliability
  • Height-adjustable feet to adapt to uneven surfaces
  • Powder-coated steel (RAL 9005, fine structure, matt)
  • Unscrewable load plate
  • Use of high-quality components – for maximum reliability and precision
  • Overload protection to prevent damage due to overloading
  • Load cells made of nickel-plated steel IP67
  • Compact terminal box made of stainless steel IP65
  • Measuring cable separation for easy removal of the digital display
  • Mains operation (100-240 V / 50-60 Hz; integrated power supply unit with 2 m mains cable)
  • Quality and precision made in Germany

Options:

  • Stand for indicator ADE STAN07 in RAL9005 (Item no. Z1300-64208 / Price €229*)

Notice:

Please order CE approval at the same time, a later CE approval
is not possible.

Model
BW2-LACK-1000×800-300+STAN07BW2-LACK-1000×800-600+STAN07BW2-LACK-1250×1000-600+STAN07BW2-LACK-1250×1000-1500+STAN07BW2-LACK-1500×1250-1500+STAN07BW2-LACK-1500×1250-3000+STAN07
Art.-Nr.
1377-3001377-6001378-6001378-15001379-15001379-3000
Capacity
300 kg600 kg600 kg1500 kg1500 kg3000 kg
Graduation
100 g200 g200 g500 g500 g1000 g
Platform/mm
1000 x 8001000 x 8001250 x 10001250 x 10001500 x 12501500 x 1250

Datasheet:

BW2-lack+STAN07-250301-Rev002-DS-en

Dateigröße: 238.26 KB
Created: 14-10-2025
Updated: 14-10-2025
Download Vorschau
Model
BW2-LACK-1000×800-300+STAN07BW2-LACK-1000×800-600+STAN07BW2-LACK-1250×1000-600+STAN07BW2-LACK-1250×1000-1500+STAN07BW2-LACK-1500×1250-1500+STAN07BW2-LACK-1500×1250-3000+STAN07
Art.-Nr.
1377-3001377-6001378-6001378-15001379-15001379-3000
Capacity
300 kg600 kg600 kg1500 kg1500 kg3000 kg
Graduation
100 g200 g200 g500 g500 g1000 g
Platform/mm
1000 x 8001000 x 8001250 x 10001250 x 10001500 x 12501500 x 1250
