Flip-Up Stainless Steel Floor Scale | ADE Series BW3-NIRO + STAN07

Flip-Up Stainless Steel Floor Scale | ADE Series BW3-NIRO + STAN07

The BW3-NIRO with STAN07 digital display is a robust and durable stainless steel floor scale ‘Made in Germany’, designed for industrial use. The flat, stable design with a flip-up load plate and gas springs allows for easy cleaning and maintenance. Stainless steel load cells (IP68), a stainless steel junction box (IP65) and integrated overload protection ensure reliable operation even under demanding conditions.
The scale is supplied fully assembled and functionally tested, including the STAN07 display and an 8 m measurement cable. The product is available in various sizes and has maximum capacities ranging from 300 to 1,500 kg. A foundation frame is required for floor installation, with a pit depth of 125 mm. Optional CE approval is available.

Description

Fully assembled and function-tested: including digital display STAN07 with 8 m measuring cable
Overload protection to protect against damage caused by overloading
Robust and flat design ensures stability and reliability
High-quality stainless steel construction and therefore particularly durable and corrosion-resistant

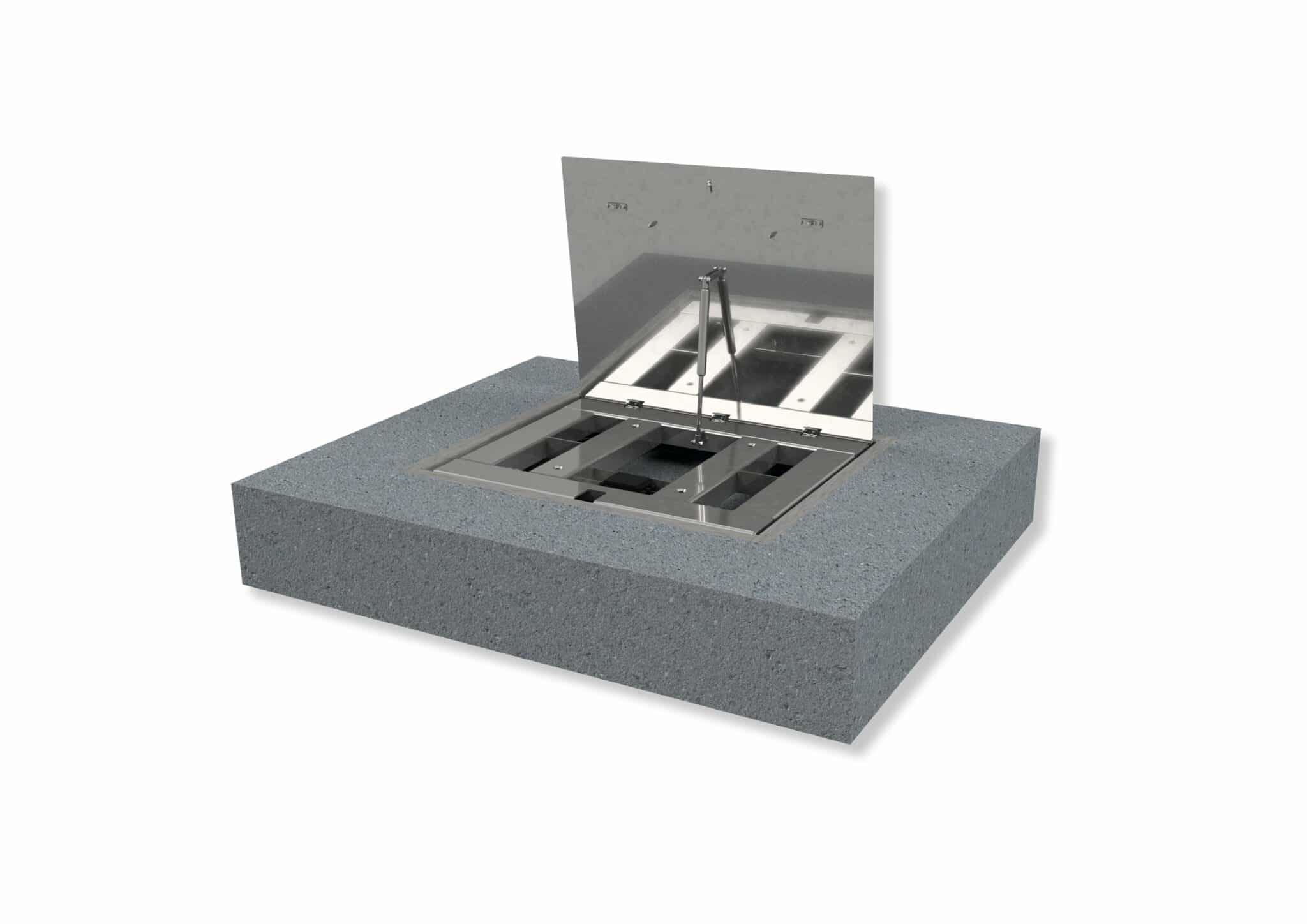

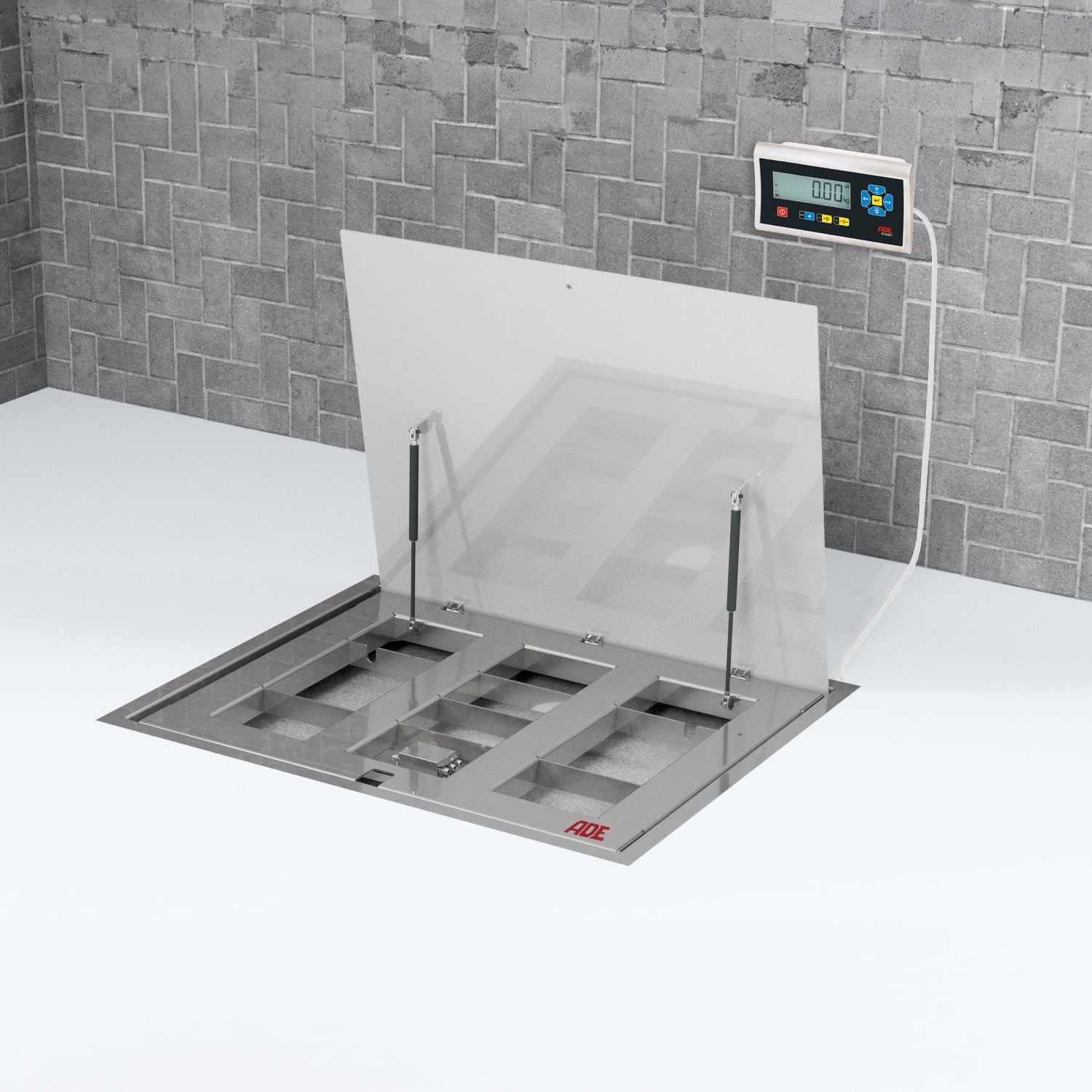

Hinged load plate with powerful, specially coated gas struts for effortless opening by hand
IP68 stainless steel load cells
Compact terminal box made of stainless steel IP65
Measuring cable separation for easy disassembly of the digital display
Mains operation (100-240 V / 50-60 Hz; integrated power supply unit with 2 m mains cable)
Quality and precision made in Germany

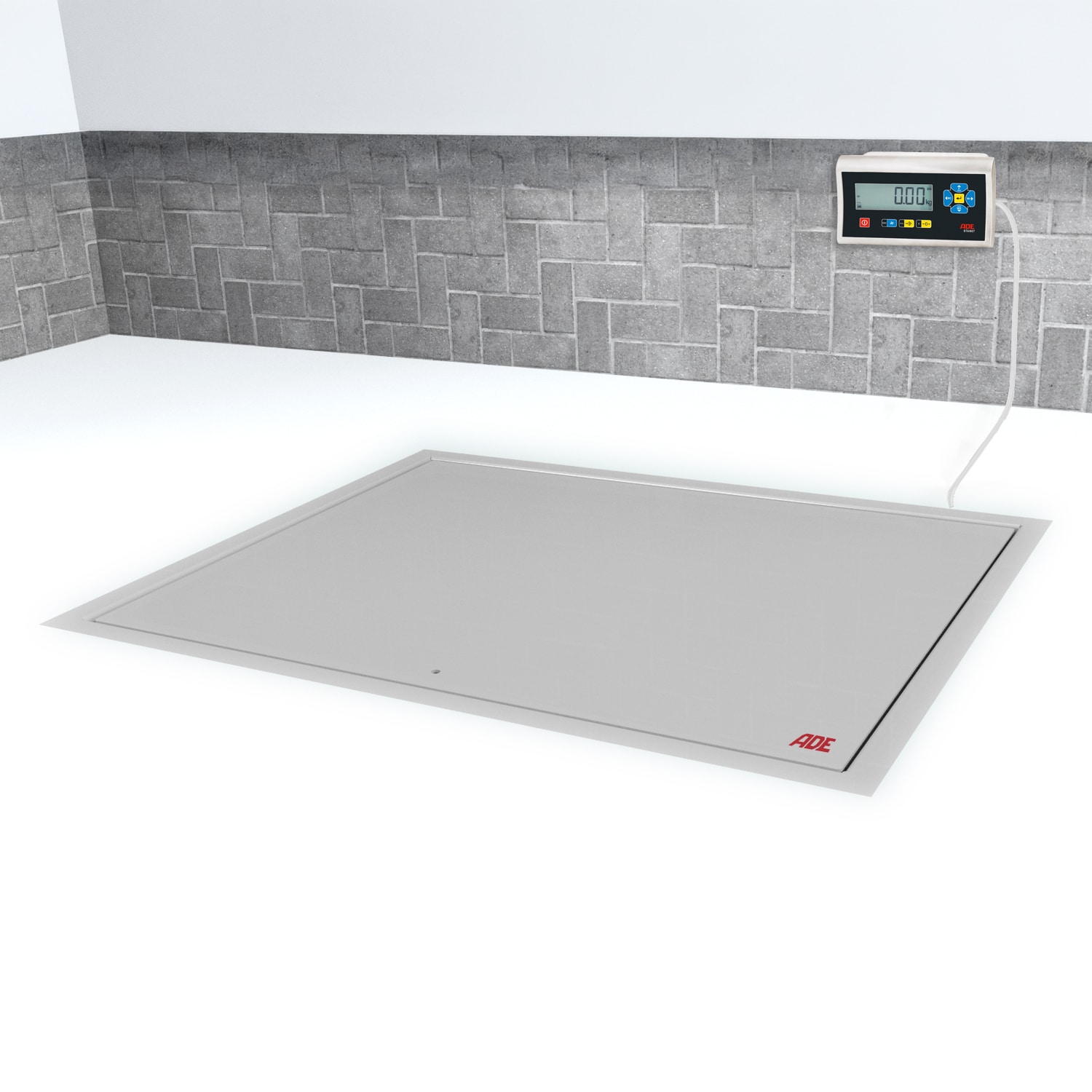

A suitable foundation frame is required for use as an in-ground scale (pit only needs a depth of 125 mm)

Options:

Stand for ADE STAN07 indicator in RAL9005 (Item no. Z1300-64208 / Price €229*)

Notice:

Please order CE approval at the same time, a later CE approval
is not possible.

Model	BW3-NIRO-1000×800-300+STAN07	BW3-NIRO-1000×800-600+STAN07	BW3-NIRO-1250×1000-600+STAN07	BW3-NIRO-1250×1000-1500+STAN07	BW3-NIRO-1500×1250-600+STAN07	BW3-NIRO-1500×1250-1500+STAN07
Art.-Nr.	1387-300	1387-600	1388-600	1388-1500	1389-600	1389-1500
Capacity	300 kg	600 kg	600 kg	1500 kg	600 kg	1500 kg
Graduation	100 g	200 g	200 g	500 g	200 g	500 g
Platform/mm	1000 x 800	1000 x 800	1250 x 1000	1250 x 1000	1500 x 1250	1500 x 1250

Datenblatt:

BW3-Niro+STAN07-250301-Rev005-DS-en

Dateigröße: 237.95 KB

Created: 14-10-2025

Updated: 14-10-2025

Download Vorschau

Model	BW3-NIRO-1000×800-300+STAN07	BW3-NIRO-1000×800-600+STAN07	BW3-NIRO-1250×1000-600+STAN07	BW3-NIRO-1250×1000-1500+STAN07	BW3-NIRO-1500×1250-600+STAN07	BW3-NIRO-1500×1250-1500+STAN07
Art.-Nr.	1387-300	1387-600	1388-600	1388-1500	1389-600	1389-1500
Capacity	300 kg	600 kg	600 kg	1500 kg	600 kg	1500 kg
Graduation	100 g	200 g	200 g	500 g	200 g	500 g
Platform/mm	1000 x 800	1000 x 800	1250 x 1000	1250 x 1000	1500 x 1250	1500 x 1250

Flip-Up Stainless Steel Floor Scale | ADE Series BW3-NIRO + STAN07

3.980,00 € plus 19% VAT
4.736,20 € incl. 19% VAT
plus shipping

Bitte treffen Sie Ihre Auswahl

CE approved

Yes
