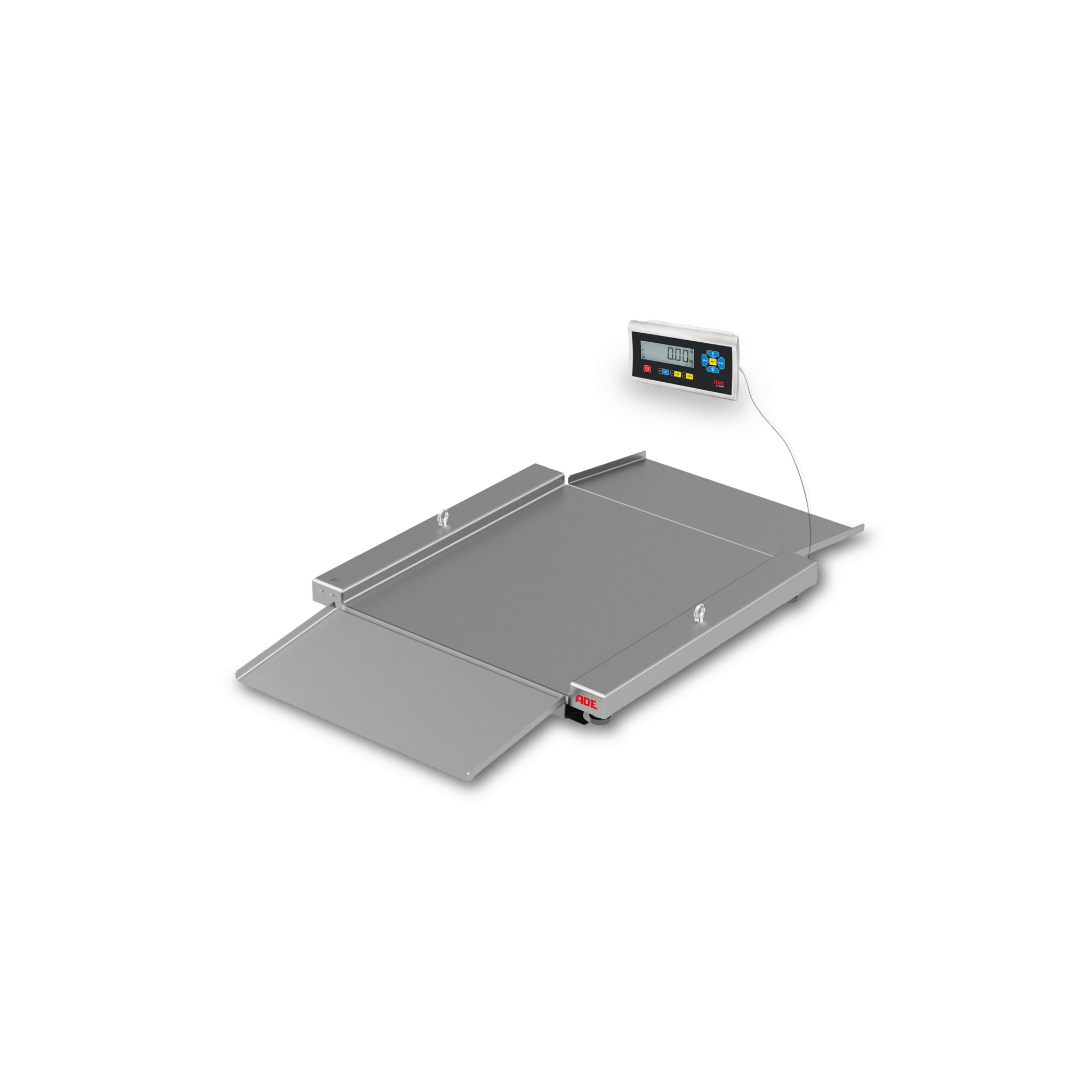

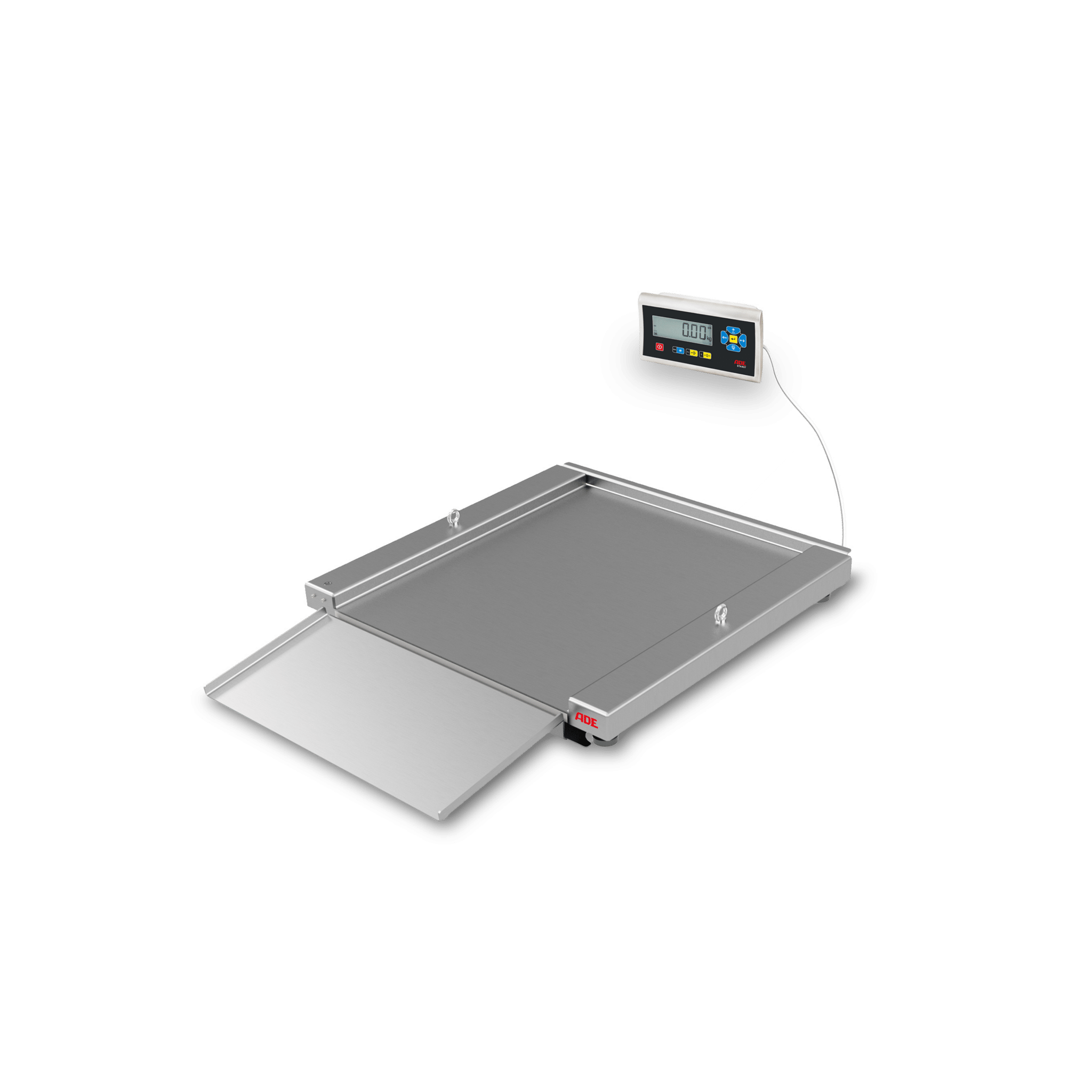

Platform Scale with Ramp | ADE Series DFW-NIRO + STAN07

Platform Scale with Ramp | ADE Series DFW-NIRO + STAN07

The DFW-NIRO enables the efficient weighing of rollable loads and is designed for industrial use. Thanks to its extremely low profile of around 7 cm and the standard smooth-sheet metal ramp, pallet trucks and transport containers can be guided directly onto the platform with minimal effort. Manufactured from corrosion-resistant stainless steel and fitted with IP68 load cells and an IP65 junction box, the system is suitable for continuous use in damp and demanding working environments.
Delivered fully assembled and functionally tested, the scale comes with the STAN07 digital display, which can be flexibly positioned at the workplace via an 8-metre-long, detachable measurement cable. Manufactured to German quality standards, the system covers maximum loads from 300 to 1,500 kg and can be precisely adapted to your processes with optional CE approval, a second drive-on ramp or a lifting device.

Description

  • Fully assembled and function-tested: including STAN07 digital display with 8 m measuring cable
  • Easy to drive on weighing platform due to low drive-in height (approx. 7 cm)
  • High-quality stainless steel construction and therefore particularly durable and corrosion-resistant
  • Includes a ramp made of smooth sheet metal for easy access
  • Overload protection to protect against damage due to overloading
  • IP68 stainless steel load cells
  • Compact terminal box made of stainless steel IP65
  • Measuring cable separation for easy removal of the digital display
  • Mains operation (100-240 V / 50-60 Hz; integrated mains adapter with 2 m mains cable), optional battery operation
  • Quality and precision made in Germany

Optional:

  • Stand for ADE STAN07 indicator in RAL9005 (item no. Z1300-64208 / price €229*)
  • Second ramp for direct drive-through
    (800 x 1,000 item no. Z16345 / price €399* /
    1,000 x 1,250 item no. Z16367 / price €489*)

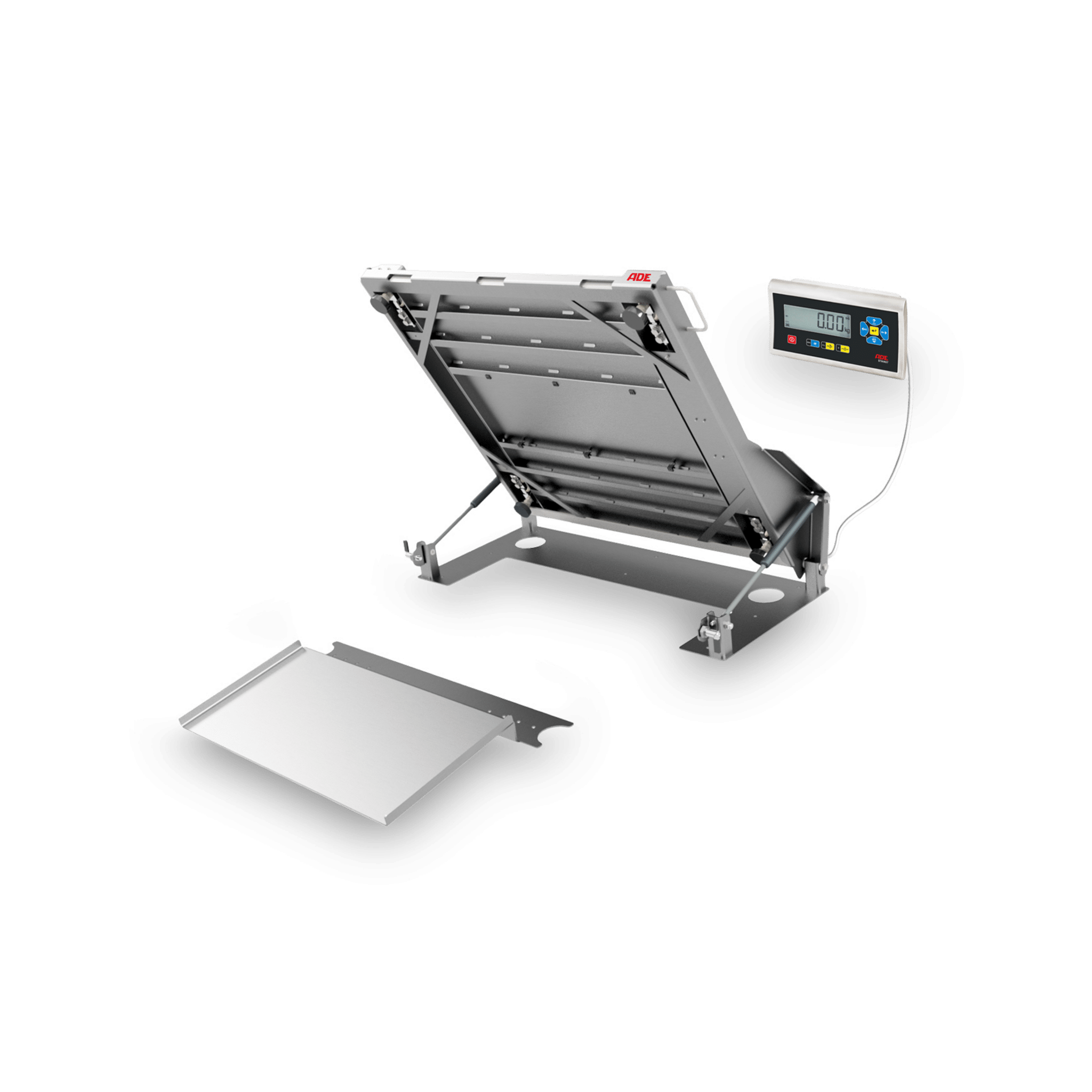

  • Lifting device for folding up
    (800 x 1,000 item no. Z1635 / price €2,190* /
    1,000 x 1,250 item no. Z1637 / price €2,510*)
Model
DFW-NIRO-800×1000-300+STAN07DFW-NIRO-800×1000-600+STAN07DFW-NIRO-1000×1250-600+STAN07DFW-NIRO-1000×1250-1500+STAN07
Art.-Nr.
1635-3001635-6001637-6001637-1500
Capacity
300 kg600 kg600 kg1500 kg
Graduation
100 g200 g200 g500 g
Platform/mm
800 x 1000800 x 10001000 X 12501000 X 1250

Datasheet:

DFW-Niro+STAN07-250301-Rev003-DS-en

Dateigröße: 249.71 KB
Created: 14-10-2025
Updated: 14-10-2025
Download Vorschau
Model
DFW-NIRO-800×1000-300+STAN07DFW-NIRO-800×1000-600+STAN07DFW-NIRO-1000×1250-600+STAN07DFW-NIRO-1000×1250-1500+STAN07
Art.-Nr.
1635-3001635-6001637-6001637-1500
Capacity
300 kg600 kg600 kg1500 kg
Graduation
100 g200 g200 g500 g
Platform/mm
800 x 1000800 x 10001000 X 12501000 X 1250
